    Vishay Intertechnology IGBT Power Modules in Redesigned INT-A-PAK Package Reduce Conduction and Switching Losses

    Built on Trench IGBT Technology, Half-Bridge Devices Offer Choice of Low VCE(ON) or Low Eoff for High-Current Inverter Stages

    Vishay Intertechnology, Inc. has introduced five new half-bridge IGBT power modules in the newly redesigned INT-A-PAK package. Built on Vishay’s Trench IGBT technology, the VS-GT100TS065S, VS-GT150TS065S, VS-GT200TS065S, VS-GT100TS065N, and VS-GT200TS065N offer designers a choice of two best in class technologies — low VCE(ON) or low Eoff — to lower conduction or switching losses in high current inverter stages for transportation, energy, and industrial applications.

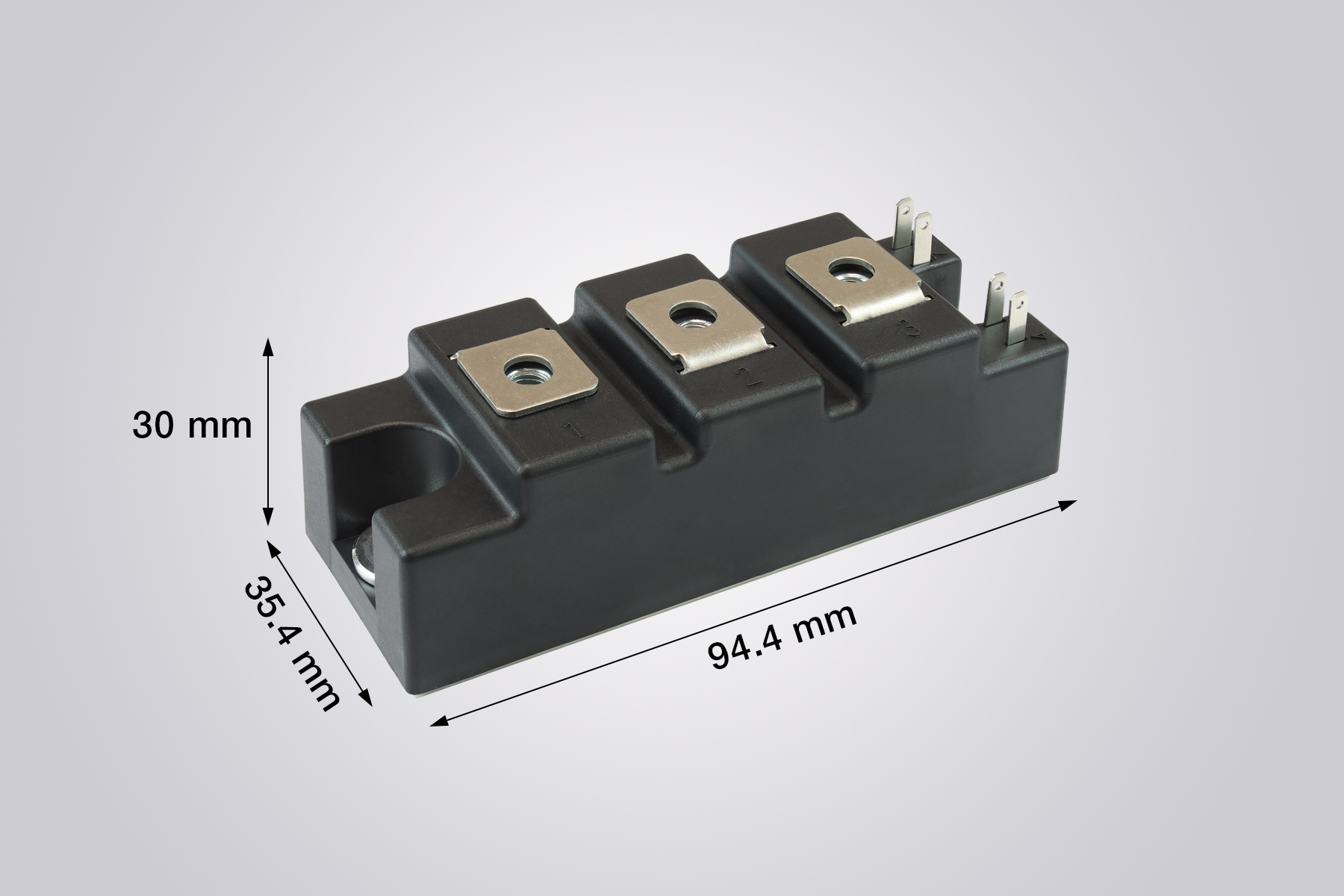

    The half-bridge devices released today combine Trench IGBTs — which deliver improved power savings versus other devices on the market — with Gen IV FRED Pt anti-parallel diodes with ultra-soft reverse recovery characteristics. Offering a new gate pin orientation, the modules’ compact INT-A-PAK package is now 100 % compatible with the 34 mm industry-standard package to offer a mechanical drop-in replacement.

    The industrial-level devices will be used in power supply inverters for railway equipment; energy generation, distribution, and storage systems; welding equipment; motor drives; and robotics. To reduce conduction losses in output stages for TIG welding machines, the VS-GT100TS065S, VS-GT150TS065S, and VS-GT200TS065S offer an industry-low collector to emitter voltage of ≤ 1.07 V at +125 °C and rated current. For high-frequency power applications, the VS-GT100TS065N and VS-GT200TS065N offer extremely low switching losses, with Eoff down to 1.0 mJ at +125 °C and rated current.

    The RoHS-compliant modules feature 650 V collector-to-emitter voltages, continuous collector current from 100 A to 200 A, and very low junction-to-case thermal resistance. UL-approved file E78996, the devices can be directly mounted to heatsinks and offer low EMI to reduce snubbing requirements.

    Key Specification Table:

    Part #

    VCES

    IC

    VCE(ON)

    Eoff

    Speed

    Package

    @ IC and +125 °C

    VS-GT100TS065S

    650 V

    100 A

    1.02 V

    6.5 mJ

    DC to 1 kHz

    INT-A-PAK

    VS-GT150TS065S

    650 V

    150 A

    1.05 V

    10.3 mJ

    DC to 1 kHz

    INT-A-PAK

    VS-GT200TS065S

    650 V

    200 A

    1.07 V

    13.7 mJ

    DC to 1 kHz

    INT-A-PAK

    VS-GT100TS065N

    650 V

    100 A

    2.12 V

    1.0 mJ

    8 kHz to 30 kHz

    INT-A-PAK

    VS-GT200TS065N

    650 V

    200 A

    2.13 V

    3.86 mJ

    8 kHz to 30 kHz

    INT-A-PAK
