    Space-Constrained Applications would be supported by Wire-to-Wire Connectors

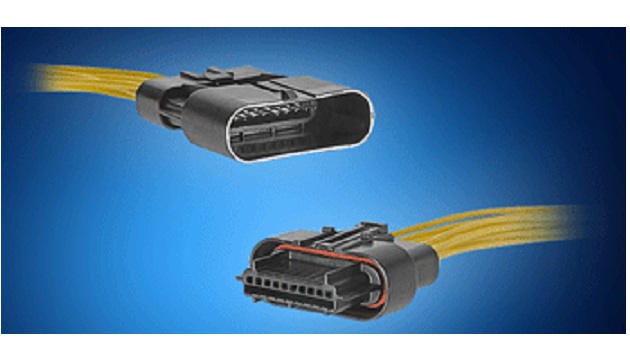

    The authorized global distributor with the newest semiconductors and electronic components, Mouser Electronics, Inc., is now stocking the Squba 1.8 mm-pitch sealed wire-to-wire connectors from Molex. Providing a reliable connection in a miniature form factor, the Squba connectors support a maximum current of 6.0 A and a maximum voltage of 125 V with IP67-rated sealed components that prevent the ingress of dust and water and caps that guard seals against damage during shipping and operation.

    The Molex Squba connectors, available from Mouser Electronics, feature a protected, low-profile positive latch to reduce the overall component size, while the 1.8 mm pitch further alleviates space constraints. The connectors are available with two to 10 sealed positions and feature a primary lock that enables 30N terminal retention, allowing the devices to withstand vibration in challenging applications.

    Molex Squba 1.8 mm-pitch sealed wire-to-wire connectors have a contact resistance of 10 milliohms and are ideal for a wide range of space-constrained applications such as outdoor lighting, landscaping equipment, security systems, commercial vehicles under-dash wiring and lighting in marine vehicles, robotics, and industrial controls.

    For more information, visit www.mouser.com.
