Modularity, Loop Disconnect, and Fault Monitoring Enhance Signal Line Protection
In a significant advancement for process automation, Pepperl+Fuchs unveils the M-LB-4000 surge protection system, a two-part solution designed to revolutionize signal line safety. This cutting-edge system integrates modularity, loop disconnect functionality, and fault monitoring, catering to signal lines up to Safety Integrity Level 3 (SIL 3) according to IEC/EN 61508 standards. The M-LB-4000 effectively mitigates induced transients caused by lightning or switching operations, promising higher plant availability.

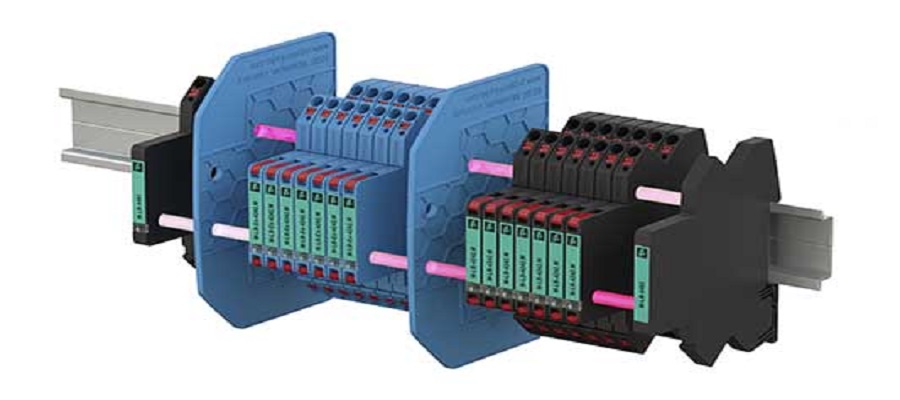

The core of the M-LB-4000 system lies in its two-part configuration, comprising a surge protection module and a fault status monitoring system. The surge protection module, housing all protective components, offers a tool-free replacement feature. Notably, the base module remains operational during replacement, eliminating the need for rewiring. A front-panel status indicator streamlines monitoring, and the signal circuit remains connected through the base module during the disconnection process. This unique design ensures uninterrupted plant operation even when replacing protection modules.
Commissioning and servicing are simplified through the loop-disconnect function, allowing easy replacement of protection modules during ongoing operations. The protection module, when rotated by 180 degrees and plugged in, activates the integrated isolating function, breaking the signal circuit for efficient servicing, loop checks, and insulation tests during commissioning or routine maintenance.
The fault status monitoring system comprises two components: the optical emitter/receiver and the optical deflection unit. These components work in tandem to monitor multiple surge protection barriers. In the event of a fault, the optical signal is interrupted, triggering the identification of the issue. The fault status module provides a visual LED status indicator for normative compliance and a status message output, allowing precise identification of the affected block. Remarkably, one fault status module can monitor up to 50 modules, contributing to comprehensive system oversight.
At a slender 6mm width, the M-LB-4000 modules save valuable space in switch cabinets, providing a practical solution for retrofitting. Existing common disconnect terminal blocks can be seamlessly replaced, irrespective of space constraints, facilitating easy integration into existing setups.
This innovative surge protection system addresses the growing demand for robust and efficient solutions in the ever-evolving landscape of process automation. Pepperl+Fuchs aims to set a new standard with the M-LB-4000, offering not only enhanced protection but also simplified maintenance procedures, contributing to the overall efficiency and reliability of industrial processes.
