Metcal, a leader in benchtop soldering and fume extraction systems, announces the release of their new BVX-250 Fume Extraction System. The 2-port portable fume extractor offers HEPA filtration of 99.97% efficiency with a significant performance increase over previous models. The system also offers new innovations for changing the filters, exhausting the air, and communicating with the operator, improving ease of use and the user experience.
The BVX-250 has a new patented front-facing main filter and simple-to-use pre-filter drawer, which allow the user to change the filters quickly and easily, without having to remove the top or manipulate the arms of the system. Each filter can now be changed in less than 30 seconds, a major improvement over comparable systems on the market.
The BVX-250 also offers a patented removable 360˚-rotating exhaust diverter which allows users to configure the exhaust direction away from the operator or install the unit directly into ventilation systems. “Since these systems are positioned in many different locations, allowing the exhaust to be customized offers a much-improved user experience,” said Can La, Product Director of Metcal.
With the release of the BVX-250, Metcal has improved communication between the fume extractor and the operator. New features, such as a large LED status ring, and the ability to directly connect the fume extractor to Metcal CV and GT soldering systems, allow for easy-to-view filter notifications from either the fume extractor or the soldering system.
- Easy 30-Second Filter Changes
- LED Status Ring
- 2x the Suction of Previous Models
- 99.97% Efficiency HEPA 13 Filter
- Optional Deep Bed Gas Filter (FG-BVX250, sold separately)
- Quiet Operation
- Three Power Levels
- 360-degree Rotating/Removable Air Diverter
- Communicates with Metcal CV & GT Series Soldering Systems
- New Circular & Rectangular Nozzles with Nozzle Filters are available
- Compatible with previous BVX & Omniflex Arms and Hoses
- Small Footprint for Under or On the Benchtop
- Remote Switch Included
HCT 910 Hot Air Rework System
Rework is a necessary part of any soldering operation. Whether machines or humans are assembling the printed circuit boards, inconsistencies happen. When a component is misplaced, misaligned, improperly soldered, or needs to be replaced, typically a soldering iron will be the tool of choice. But for many operators and applications, a solid hot air tool provides additional rework capabilities.
Some of the main concerns for hot air tools is the perceived lack of process control, slower productivity, and safety with hot air. So, how can we alleviate these worries? With the right rework system. Rework situations vary, so it is essential your hot air tool includes precise and simple temperature and flow rate control.
Many hot air systems on the market are not intuitive to use. The menu structures are confusing, the displays are limited, and they are simply not plug-in-play. A system that is not intuitive for the operator is a system that is going to regularly bog down throughput.
When comparing systems, be sure to investigate exactly how the hot air unit operates. Most system manufacturers have demos and how-to videos on YouTube. Watch them to see exactly how each unit is configured. You may be surprised by how few are user-friendly.

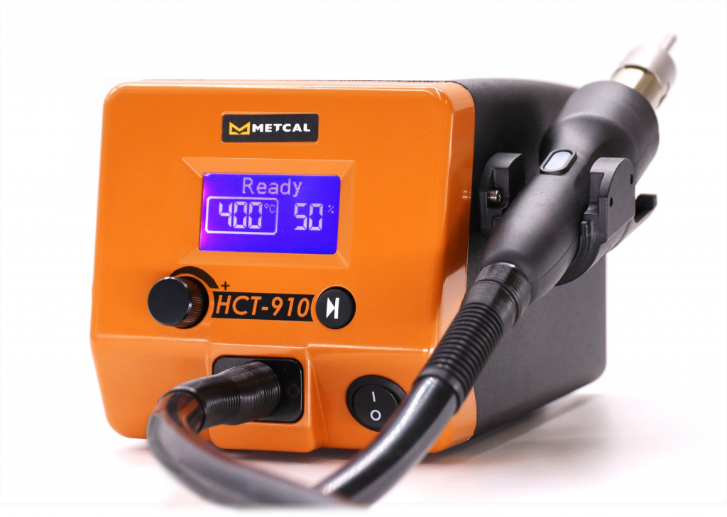

Designed with ease of use in mind, Metcal’s new HCT-910 Hot Air Rework System features a new “on-the-fly” manual mode, which allows for fast temperature and airflow adjustments with a single knob (Figure 1). Easily toggle between temperature settings and air flow rate, turn the knob to the desired setting, and push the knob to set.
Enhance Operator Safety with Clear System Status Indicators
KEY FEATURES:
- Status indicator lights on the hand-piece
- Easy to configure and monitor
- Intuitive user interface with convenient presets and admin lockout
- Accurate temperature, up to 600 °C (1112 °F)
- Fast time-to-temperature
- Airflow from 5 – 120 l/m (4.24 cfm)
- Tool-less nozzle/bayonet design
- Replaceable heater
ADDITIONAL FEATURES:
- Clearly designed digital screen for temperature and flow rate display
- System presets and password-protected admin mode
- Multi-language (English, Spanish, German, French, Chinese)
- Hand-piece holder mountable on either side of the unit
For HCT-910 Hot Air Rework System technical data, user guide, how-to videos, and more, go to Metcal.com.
