    Latest screw terminal aluminium capacitors offer better ripple current handling

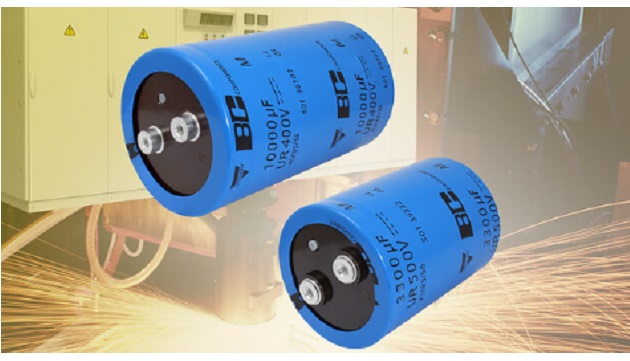

    Vishay Intertechnology, Inc. launched a new series of miniaturized screw terminal aluminum capacitors that deliver 10 % higher capacitance and 10 % better ripple current handling for a given can size than previous-generation devices, allowing designers to pack more energy storage into less space. The new Vishay BCcomponents 501 PGM-ST series devices will be used in a wide range of applications and end products, including motor drives, HVAC, welding inverters, UPS, X-ray equipment, microgrid interfaces, wind turbines, and scientific test equipment.

    The 501 PGM-ST series devices are available with rated voltages of 400 V, 450 V, and 500 V and capacitance values from 1000 µF to 18 000 µF. Featuring a cylindrical aluminum case insulated with a blue sleeve and pressure relief in their sealing disc, the new 501 PGM-ST capacitors offer a high rated ripple current to 30.2 A and a useful life of 5000 hours, both at + 85 °C. The capacitors are lead (Pb)-free and RoHS compliant.

    As polarized aluminum electrolytic capacitors with a non-solid electrolyte, the 501 PGM-ST capacitors are ideally suited for applications that demand high energy storage in a small form factor. The 500 V rating provides increased voltage headroom in motor drives, UPS, and solar inverters by allowing three-phase, 380 V designs to be re-used in 480 V systems by simply upgrading the DC-Link capacitors and enables solar inverter systems to be upgraded for 1000 V maximum input.

    Device Specification Table:

    Case size (D x L in mm) 50 x 80 to 90 x 195
    Capacitance range 1,000 µF to 18,000 µF
    Tolerance ± 20 %
    Ripple current 5.49 A to 30.2 A
    Rated voltage range 400 V to 500 V
    Temperature range – 40 °C to + 85 °C
    Useful life at + 85 °C 5000 hours
    Shelf life at 0 V, + 85 °C 1000 hours
    Sectional specification IEC 60384-4/EN130300
    Climatic category IEC 60068 40/085/56

    Samples of selected values for the 501 PGM-ST capacitors are available now. Production quantities are available with lead times of 18 weeks.

    For more information, visit: www.vishay.com
