ROHM recently announced the availability of a power supply monitoring IC, the BD39040MUF-C, with BIST (Built-In Self Test) that supports functional safety. This IC is ideal for automotive application power supply systems requiring fail-safe measures such as electric power steering as well as sensors and cameras for autonomous driving and ADAS.
Rapid advancements in ADAS and automated driving in the automotive sector have spurred demand for functions such as collision prevention and lane assist that reduce the risk of accidents. Accordingly, product development for mounted semiconductors has to take into account how to ensure functional safety (fail-safe) in the event of failure considering self-diagnostic and other functions.

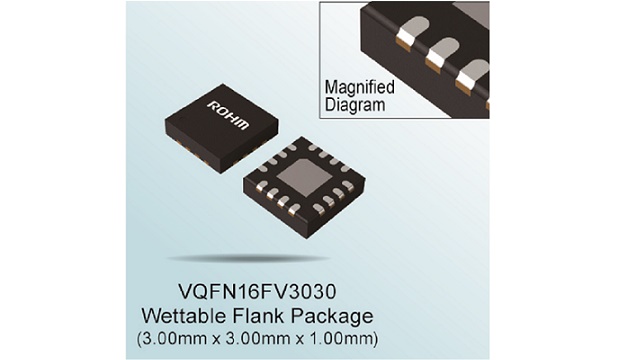

The BD39040MUF-C is a power monitoring IC that provides monitoring functions required for functional safety in the power supply systems of ADAS sensor modules. In addition to voltage monitoring functions (Power Good, reset) and a watchdog timer for monitoring the ECU essential for functional safety, ROHM’s power supply monitoring IC is the first in the industry to introduce a self-diagnostic function. By utilizing original technology, this IC makes it possible to detect potential failure of the power supply IC itself without affecting existing systems. The integration of these functions into a compact 3mm square package makes it ideal for ADAS applications demanding high miniaturization.
ROHM is committed to contributing to technological innovation in the automotive sector by developing products that achieve greater system optimization and energy savings.
Key Features:

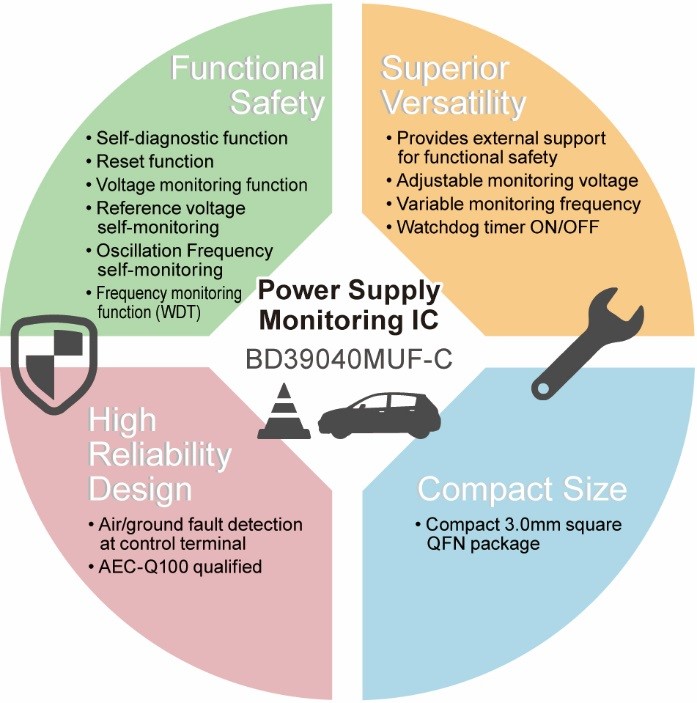

The BD39040MUF-C is the first power supply monitoring IC in the industry to include a self-diagnostic function along with additional features that make it ideal for functional safety systems required for ADAS and automated driving.
- Self-diagnostic function provides the reliability needed for functional safety
For functional safety, to clear the highest safety requirement level (ASIL) it is necessary to detect potential failures of the power supply monitoring function itself. For example, in the case a failure occurs when a monitoring function (i.e. overvoltage) cannot detect an abnormality, it becomes a hidden fault that masks the breakdown, creating a dangerous situation.
In order to overcome this, the BD39040MUF-C with self-diagnostic function utilizes original circuit technology that enables it to detect potential failures beforehand. Both the reference voltage and oscillator circuits are multiplexed to enable continuous mutual monitoring between systems in order to improve safety during normal operation.
- Provides flexible support for existing systems
The BD39040MUF-C easily supports functional safety in existing systems without any changes of power supply sequences. Additionally, the watchdog timer for ECU can be adjusted via external resistance and the effective monitoring timing arbitrarily set ON/OFF. Furthermore, the IC is offered in a compact 3mm square package ideal for ADAS applications requiring smaller form factor. This addresses the need for more compact safe driving support modules in ADAS and automated driving systems that demand functional safety.
- Integrates various monitoring functions required by automotive power supplies and ECUs
The BD39040MUF-C incorporates a range of monitoring functions, including overvoltage and undervoltage monitoring (Power Good) required for power supplies, and watchdog timer and reset functions demanded by ECUs. Among these, the watchdog timer is a window-type that monitors whether the ECU is stuck in a loop within a programmable timeout period.
Applications:
– Radars, cameras, and sensors for ADAS/automated driving
– ECUs
– Electric power steering
– Dashboard cluster, LCD panels
– Infotainment
– Lamps
– And other power systems requiring functional safety measures beyond ASIL-B
