AC to DC Converter Types, Formula and Examples

AC-DC converters are essential electronic circuits that transform alternating current (AC) into direct current (DC). These devices are integral to powering electronics such as computers, televisions, and smartphones, which rely on DC power for proper operation. The use of AC-DC converters is driven by the fact that AC is the standard power supply provided by utility companies, while many electronic devices are designed to function with DC power. By converting AC into DC, these converters enable electronic systems to run reliably and efficiently.

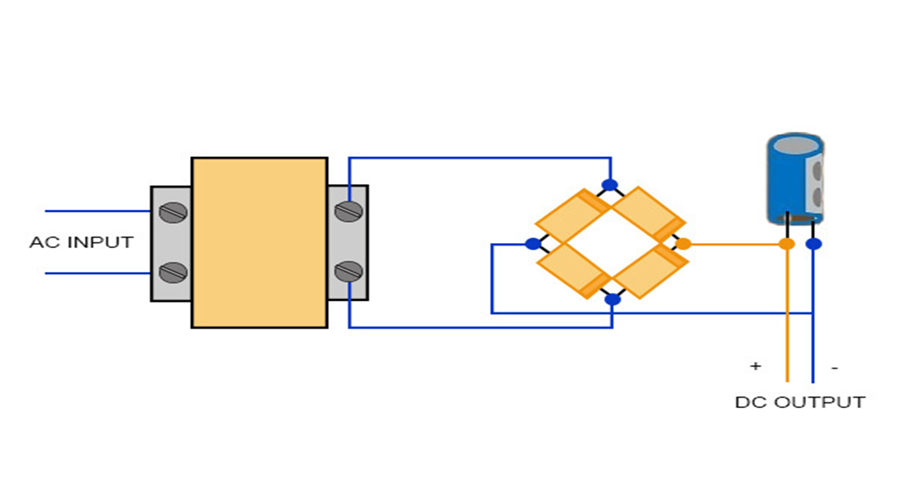

AC-DC converters are composed of essential components such as step-down transformers, switching devices like diodes and thyristors, passive filters comprising inductors and capacitors, and the load they supply. The choice of a specific AC-DC converter type depends on factors such as the required voltage and current output, as well as the desired efficiency and reliability of the system. Typical AC-DC converters include designs that incorporate transformers, diode-based rectifiers, and voltage regulation circuits.

One of the primary benefits of AC-DC converters is their ability to provide a stable and reliable DC power supply, which is vital for ensuring the consistent performance of electronic devices. By converting AC to DC, these converters deliver power with minimal fluctuations, supporting the smooth operation of the connected equipment. Additionally, AC-DC converters contribute to reduced energy losses and improved efficiency in electronic devices by enabling optimized power delivery.

Types of AC to DC Converters

AC to DC converters, also known as rectifiers, can be classified based on control, components, and application needs. Below is a detailed categorization:

1. Uncontrolled Rectifiers

These rectifiers use diodes to convert AC to DC and provide a fixed output without control over the voltage or current.

Types:

• Half-Wave Rectifier
  • Uses a single diode.
  • Only one-half of the AC cycle is converted to DC.
  • Simple and inexpensive but has a high ripple factor.
  • Applications: Small, low-power devices.
• Full-Wave Rectifier
  • Utilizes two diodes and a center-tapped transformer.
  • The entire AC cycle is utilized for conversion.
  • Applications: Moderate power supply requirements.
• Bridge Rectifier
  • Uses four diodes in a bridge configuration.
  • Converts both AC halves without needing a center-tapped transformer.
  • Applications: Power supplies for appliances and electronics.

2. Controlled Rectifiers

These rectifiers use controllable devices like thyristors or SCRs, allowing regulation of the output.

Types:

• Half-Controlled Rectifier
  • Mix of diodes and thyristors.
  • Partial control over the output.
  • Applications: Medium-performance motor drives.
• Fully Controlled Rectifier
  • All diodes are replaced by thyristors.
  • The DC output can be precisely controlled by modifying the firing angles of the switching devices.
  • Applications: Industrial equipment and variable-speed drives.

3. Linear AC to DC Converters

These converters combine rectification with linear voltage regulation.

• Low-efficiency but provide highly stable and low-ripple DC output.
• Applications: Sensitive analog devices, lab equipment.

4. Switch-Mode AC to DC Converters (SMPS)

Use high-frequency switching components to achieve efficient and compact designs.

• Buck Converters: Step down voltage.
• Boost Converters: Step up voltage.
• Buck-Boost Converters: Step up or down voltage as required.
• Applications: Computers, telecom systems, industrial automation.

5. Special-Purpose Rectifiers

• Phase-Controlled Converters: Used in grid applications for HVDC power systems.
• Multiphase Rectifiers: Employ three-phase input for higher power levels.
• Inverter-Based Systems with Rectifiers: Combine DC-DC stages for renewable energy systems or battery chargers.

6. Modern Integrated Converters

• Integrated circuits (ICs) that handle AC-DC conversion with multiple stages of regulation.
• Compact, energy-efficient, and widely used in IoT and portable devices.

AC to DC Conversion Formula

AC to DC conversion is achieved through processes such as rectification and filtering. Below are the key formulas used in AC to DC conversion:

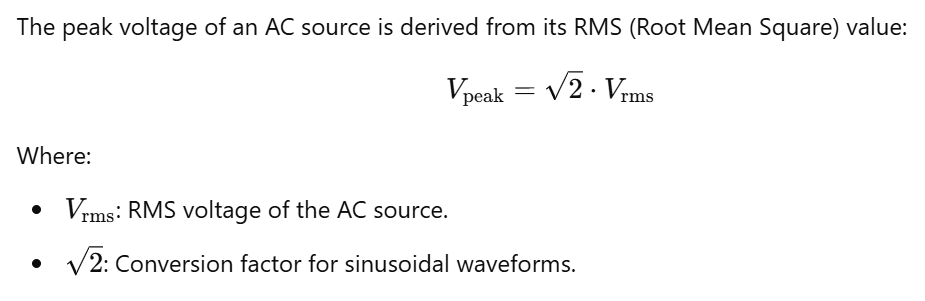

1. Peak Voltage (VpeakV_{\text{peak}})

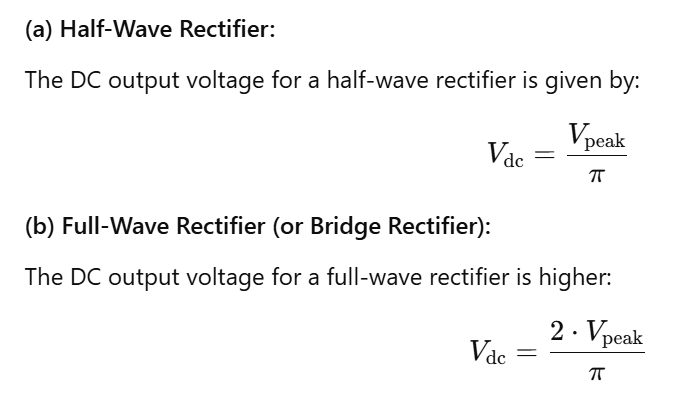

2. DC Voltage Output

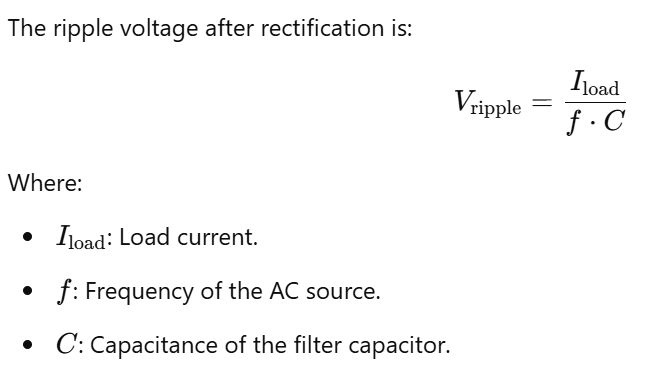

3. Ripple Voltage

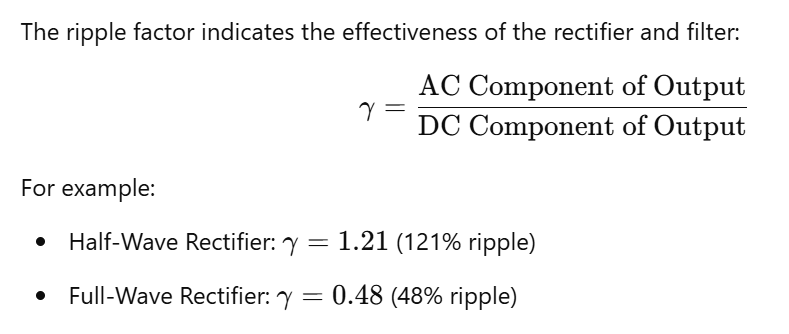

4. Ripple Factor (γ\gamma)

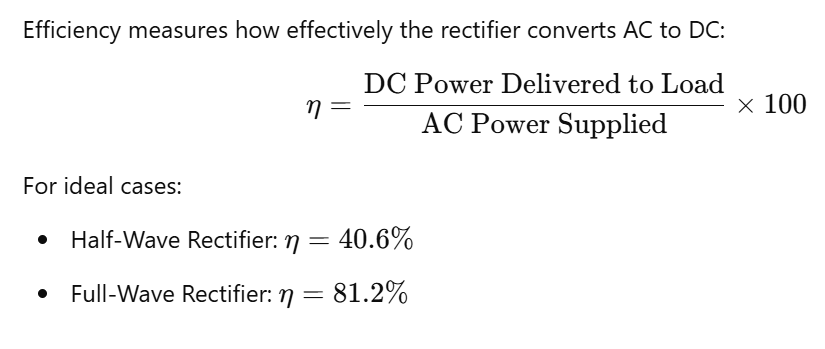

5. Efficiency (η\eta)

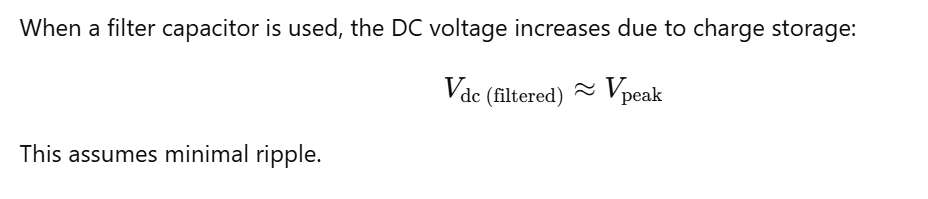

6. Filtered DC Voltage

Examples of AC to DC Converters

AC to DC converters are used in various applications, ranging from small household devices to industrial systems. Below are examples of different types of converters based on their applications:

1. Consumer Electronics

• Phone Chargers
  • Converts AC mains power (110-240V) to low-voltage DC (5-12V) for smartphones and tablets.
  • Example: USB wall adapters.
• Laptop Power Supplies
  • Converts AC to DC (typically 19V) to power laptops.
  • Switch-Mode Power Supplies (SMPS) are commonly used due to their efficient performance and compact form factor.
• Televisions
  • Internal AC-DC converters supply regulated DC voltages to various components of the TV.

2. Automotive Applications

• Onboard AC-DC Converters
  • In electric vehicles (EVs), these converters transform AC from charging stations into DC to charge the vehicle’s battery.
• Car Adapters
  • Plug into vehicle cigarette lighter sockets to convert 12V DC (from the car battery) to DC output for devices like phones and GPS units.

3. Industrial Systems

• Power Supplies for Control Systems
  • Industrial automation systems use AC-DC converters to power programmable logic controllers (PLCs) and sensors.
• Rectifiers in Motor Drives
  • Convert AC mains to DC for use in DC motor drives, enabling precise speed and torque control.
• HVDC Power Systems
  • High Voltage DC (HVDC) transmission systems use large-scale rectifiers for long-distance power transmission.

4. Renewable Energy Systems

• Solar Inverters
  • Convert solar panel-generated DC power to AC, and include an AC-DC stage for storage systems.
• Wind Turbine Systems
  • Convert AC generated by turbines to DC for battery storage or grid synchronization.

5. Household Devices

• LED Lighting
  • AC-DC drivers convert mains AC power to regulated DC voltage for LED lights.
• Power Adapters for Appliances
  • Devices like routers, set-top boxes, and gaming consoles use AC-DC adapters to operate.

6. Medical Equipment

• Imaging Systems
  • CT and MRI scanners rely on AC-DC converters to provide a stable and noise-free DC power supply.
• Portable Medical Devices
  • AC-DC converters supply regulated power to devices like ventilators and infusion pumps.

7. Telecom and IT Infrastructure

• Base Stations and Servers
  • Use high-capacity AC-DC converters to power servers and communication equipment with minimal energy losses.
• UPS Systems
  • AC-DC converters charge batteries in Uninterruptible Power Supplies (UPS), ensuring backup power during outages.
